Take Your Business Anywhere with Winther CX. Engineered to Streamline Your Business
-
Agility Strength and Stability
When it comes to last-mile delivery, agility, strength, and stability are essential for efficient transportation of goods from point A to point B. The Winther CX cargo bike offers a solution that not only meets these requirements but also helps save you time and money. Specifically designed for urban areas, it is perfect for businesses. The powder-coated aluminum is solidly constructed. The securely riveted box of the Winther CX cargo bike, with steel reinforcements in all corners, ensures stability and resistance to torsion, impacts, and heavy loads. This construction prevents the box from easily deforming or bending during use or transport.
The sturdy design is crucial for protecting the contents of the box, as it prevents compression or shifting under heavy loads. This provides optimal protection for the transported items.
-
Maximum Protection and Storage Capacity
The Winther CX cargo bike offers a spacious capacity of 330 liters, providing ample room for parcels, tools, or any other items required by your business. At the front, an impact-resistant bar adds an extra layer of protection for you and your cargo, safeguarding against collisions.
The Winther CX cargo bike is a reliable and convenient choice for transportation needs. It boasts an impressive weight capacity of 250 kg, allowing it to safely handle even the heaviest loads. Its narrow width enables easy navigation of bike lanes, facilitating effortless transportation of large quantities while maintaining maximum flexibility. Additionally, the bike is equipped with a sturdy gas damper that provides a smoother ride, especially when carrying heavy loads in the box.
-

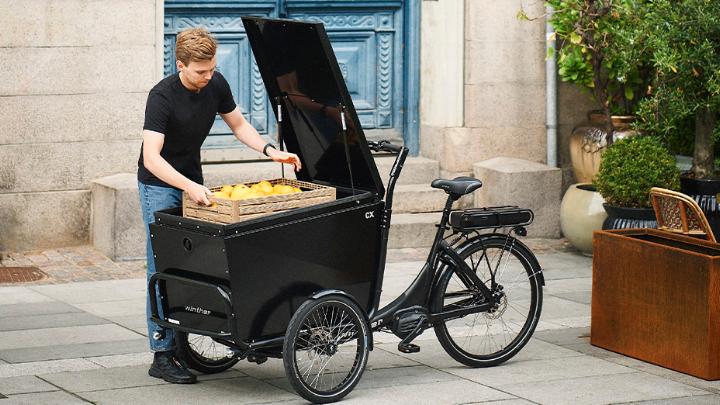

Effortless access to the box
Take full advantage of the Winther CX lid's exceptional functionality. Designed with your convenience in mind, it is equipped with two robust gas springs. This thoughtful addition ensures effortless access to the cargo box, even when your hands are occupied. No more struggling to juggle items while trying to open the lid. With the aid of these sturdy gas springs, the lid effortlessly opens up to a generous angle of 88 degrees, providing you with ample space and freedom to conveniently load and unload bulky or oversized objects.
-
Safety Features On Winther CX
Winther CX is equipped with Hydraulic Disc Brakes on all three wheels, which is a most powerful and safe brake option. They feature a strong braking force during all weather conditions, also when it’s wet outside. Hydraulic Disc Brakes are superior in modulation - meaning the ability to precisely and accurately control the braking force - so you can stop the bike when and where you want.
The brake system comes with a parking brake which is easily activated by pushing a dial on the left brake lever. This locks the two front wheels, securing the cargo bike, also on uneven terrain.
The stabile 3-wheeled platform, ensures a very easy and secure ride. The geometry is optimized for head tube based steering which give Winther Cargo bikes a very stabile ride. In addition a sturdy Gas-damper on the steering, softens the ride so you can ride your Winther CX safely, even with big loads in the box.
The box is secured to the steel base of the cargo bike with strong bolts and in the front an impact-resistant bar is protecting the freight and you.
Winther CX is equipped with Hydraulic Disc Brakes on all three wheels, which is a most powerful and safe brake option. They feature a strong braking force during all weather conditions, also when it’s wet outside. Hydraulic Disc Brakes are superior in modulation - meaning the ability to precisely and accurately control the braking force - so you can stop the bike when and where you want.
The brake system comes with a parking brake which is easily activated by pushing a dial on the left brake lever. This locks the two front wheels, securing the cargo bike, also on uneven terrain.
The stabile 3-wheeled platform, ensures a very easy and secure ride. The geometry is optimized for head tube based steering which give Winther Cargo bikes a very stabile ride. In addition a sturdy Gas-damper on the steering, softens the ride so you can ride your Winther CX safely, even with big loads in the box.
The box is secured to the steel base of the cargo bike with strong bolts and in the front an impact-resistant bar is protecting the freight and you.
-
Customized to Your Style
Adding graphics to your Winther CX is a great way to make it your own and customize it to your style or your company's visual expression. The large box provides plenty of space to be creative, both on the sides and on the top. With graphics, you can make your cargo bike stand out from the crowd while also advertising your business.
-
Remarkable Maneuverability
Winther CX has one of the smallest turning circles on the market, enabling it to make tight turns in confined spaces and even perform U-turns. The sturdy 3-wheeled platform of our cargo bike guarantees exceptional stability during the loading and unloading process. Effortlessly park your cargo bike using the innovative 3-wheel design, where engaging the parking brake on the Hydraulic Disc System secures the two front wheels, ensuring a safe and secure hold on any type of terrain.
-
Tailwind On Demand
All Winther cargo bikes can be equipped with either a rear hub motor or a mid-drive motor. The rear hub motor provides robust pedaling assistance, making it easier to conquer any terrain. It is powerful, reliable, and durable. On the other hand, the mid-drive motor offers a smoother and more stable ride, improving overall balance and comfort. When selecting the right motor, consider technical specifications and personal preferences, such as power, speed, and torque. Our E-motors assist until 25 km/h for compliance and safety. All Winther cargo bikes come equipped with a removable battery, providing maximum convenience for recharging at any standard power outlet.
MOTOR & GEAR OPTIONS
-
The Bafang rear hub motor with 8 external gears gives you powerful pedaling assistance and can feel like you are getting a friendly push from behind. When the sensor-based motor kicks in, you get a consistent and even help from the motor matching your selected assist level.
The e-motor system consists of a Bafang motor connected to a huge high-capacity battery, giving Winther CX an incredibly powerful and lightweight rear hub motor. The motor system is powered by a powerful Bafang Li-Ion battery with a capacity of 750 Wh (equivalent to 17.5 Ah), located on the rear rack, and has an output torque of 45 Nm, giving Winther CX plenty of power, both up the steep hills and in quick accelerations. The Bafang M410 also features a startup assist, which helps the rider maneuver the cargo bike more easily when sitting on the cargo bike. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills.
Together with the motor, the battery gives you an estimated range of up to 60 km on a single charge, depending on terrain, weather conditions, load, and assistance level. With the 8 external gears, you have even more control over your pedaling and can adjust for different terrain and riding conditions. The Bafang rear hub motor weighs 3.8 kg and is designed in an elegant style that perfectly matches Winther CX sleek design.
-
BAFANG's 3-speed automatic mechanical gear shift is designed to enhance your cycling experience. The gear shift operates automatically and is controlled by the wheel's speed and centrifugal force. This means that you can maintain a smooth cadence without having to manually change gears. The automatic gear shift, located in the rear hub, eliminates the need for gear cables that can freeze in winter. This ensures minimal maintenance and ensures a seamless riding experience, even in the coldest months.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills. The Bafang 410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily when walking beside it. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
Thanks to its accurate gear mechanism, the 3-speed shift system effortlessly enhances your ride. Depending on the wheel speed, the gears shift with precision, providing a seamless and enjoyable riding experience.
The motor system is powered by a high-performance Bafang Li-Ion battery, boasting an impressive capacity of 752Wh (equivalent to 17.5 Ah). Conveniently located on the rear rack, this battery delivers ample power for your rides. With this motor and battery combination, you can expect an estimated range of up to 60 km on a single charge. However, please note that the range may vary depending on factors such as terrain, weather conditions, load, and assistance level.
-
The powerful and lightweight Bafang M410 motor offers an unbeatable combination of performance and design. With its 5 internal gears and handlebar-mounted shifter, this motor provides impressive power and versatility. The Bafang M410 has a torque output of 80 Nm and a power output of 250 watts, allowing Winther CX to effortlessly handle uphill climbs and accelerate quickly. In addition, it operates silently and resiliently in any weather condition.
To power this exceptional motor system, Winther CX relies on a high-capacity Bafang Li-Ion battery. With a capacity of 752 Wh (equivalent to 17.5 Ah), this battery provides long-lasting power for the motor. Conveniently located on the rear rack, the battery, combined with the motor, offers an estimated range of up to 60 km on a single charge. It is important to note that the actual range may vary depending on terrain, weather conditions, load, and assistance level.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills.
The Bafang M410 also features a startup assist, which helps the rider maneuver the cargo bike more easily when sitting on the cargo bike. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
-
Shimano STePS E6100 provides Winther CX with a powerful, lightweight mid-drive motor combined with an Alfine 8-speed internal gear system and a shifter mounted on the right side of the handlebars. The motor can provide 250 watts and has an output torque of 54 Nm, giving Winther CX plenty of power, both up hills and in fast accelerations. The motor is extremely quiet and durable in all weather conditions.
Additionally, with the Alfine 8-speed internal gear system, riders can easily switch between gears to find the right level of resistance for their riding needs. The internal gears provide a smooth and efficient shifting experience, allowing riders to keep their momentum and power through various terrains and conditions.
The motor system is powered by a powerful Li-Ion battery of 504 Wh (equivalent to 14 Ah), located on the rear rack. This placement ensures a balanced weight distribution for optimal handling and stability. Together with the motor, the battery gives you an estimated range of up to 55 km on a single charge, but of course, this depends on terrain, weather conditions, load, and the assistance level.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 3 different power levels (Eco, Normal, High), providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills. In addition to its powerful motor and internal gear system, the Shimano STePS E6100 is also compatible with AXA One-Key-System. This feature allows riders to use the same key to lock both their battery and bike, providing added convenience and security.
-
The Shimano STePS E6100CRG motor featured on Winther CX is a mid-drive motor with a power output of 250 watts and a torque rating of 60 Nm. It is known for being strong, lightweight, and quiet. One of the notable features of this motor is its automatic gear shifting capability. Using the Di2 technology, the electronic gears shift automatically as you ride, making the 5 internal gear changes seamless and convenient. It shifts up as you gain speed and downshifts when you come to a stop, ensuring optimal gear ratios at all times.
The motor system is powered by a high-capacity Li-Ion battery with a rating of 14Ah and an energy content of 405Wh. The battery is located on the rear rack of the cargo bike, providing easy access for charging and replacement. With this battery, you can expect an estimated range of up to 60 km on a single charge, depending on various factors such as terrain, weather conditions, load, and the level of assistance you use.
In terms of gears, the Shimano STePS E6100CRG allows for manual control of gears, giving you the ability to override the automatic gear shifting when needed. This feature is especially useful when facing steep hills and requiring quick downshifting for optimal power and control.
Furthermore, the Shimano STePS system is compatible with the AXA One-Key-System, which allows you to use the same key for both your battery lock and bike lock. This adds an extra level of convenience and security, as you only need one key to lock and unlock both components.
Overall, the Shimano STePS E6100CRG motor on Winther CX offers a powerful and efficient riding experience, with automatic gear shifting, a high-capacity battery, and compatibility with the One-Key-System. Whether you're climbing hills or cruising on flat terrain, this motor and its features provide a smooth and enjoyable ride.
Technical Specification
Frame Construction | Aluminium 6061 (rear), steel (front) |
---|---|
Cabin Base | Powder coatet aluminum box, plywood base plate. Powder coatet aluminum with strong lock |
Steering System | Head tube-based to ensure stable and dynamic steering |
Steering Damper | 1 setting |
Load Capacity | Total Max Weight: 250 Kg, Load cabin: Max 100 kg, Rider: Max 110 kg Volumen: 330 L |
Dimensions | Length: 207 cm, width: 89 cm, height: 115 cm |
Cabin Dimensions | Length: 90 cm, width: 54 cm, height: 55 cm Volumen: 330 L |
Designer | Leif Hagerup & Lars Malmborg Finn & Ko |
Download catalogues & product data
Name | Download | File type | |
---|---|---|---|
|
Technical Specifications | 69 KB | |
|
Catalogue | 4494 KB | |
|
General Instruction Manual | 1690 KB |
